ACPL-M483

Inverted Logic High CMR Intelligent Power Module and Gate Drive Interface Optocoupler

ACPL-M483 General Description

The ACPL-M483/P483/W483 fast speed optocoupler contains a AlGaAs LED and photo detector with built-in Schmitt trigger to provide logic-compatible waveforms, eliminating the need for additional wave shaping. The totem pole output eliminates the need for a pull up resistor and allows for direct drive .

ACPL-M483 Datasheet (205.30 KB)

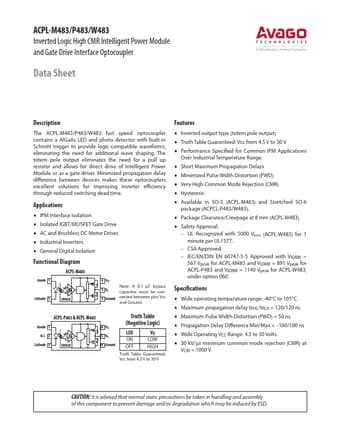

Preview of ACPL-M483 PDF

Datasheet Details

Part number:

ACPL-M483

Manufacturer:

AVAGO

File Size:

205.30 KB

Description:

Inverted logic high cmr intelligent power module and gate drive interface optocoupler.
