ACPL-M46T

Automotive Intelligent Power Module

ACPL-M46T Features

* Performance specified for common IPM applications over automotive temperature range: -40°C to 125°C

* Fast maximum propagation delays -t PHL & tPLH = 550 ns

* Minimized Pulse Width Distortion (PWD = 370 ns)

* Very high Common Mode Rejection (CMR): 15 kV/μs at VCM = 1500 V

* C

ACPL-M46T General Description

The A CPL-M46T c onsists of a AlG aAs optically c oupled to an int egrated high gain phot o det ector. M inimized propagation dela y diff erence bet ween devic es make these optocouplers excellent solutions for improving automotive inverter effi ciency through reduced switching dead time. Specificat.

ACPL-M46T Datasheet (273.97 KB)

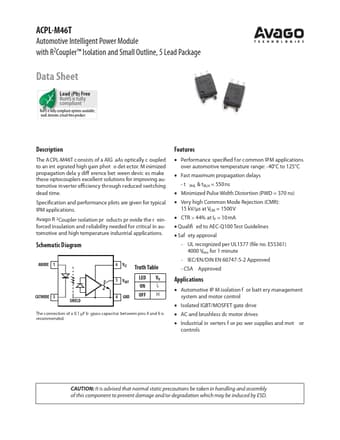

Preview of ACPL-M46T PDF

Datasheet Details

Part number:

ACPL-M46T

Manufacturer:

AVAGO

File Size:

273.97 KB

Description:

Automotive intelligent power module.
ACPL-M46T Automotive Intelligent Power Module with R2Coupler™ Isolation and Small Outline, 5 Lead Package Data Sheet Lead (Pb) Free RoHS 6 fully comp.
