HMMC-2027

DC-26.5 GHz SPDT GaAs MMIC Switch

HMMC-2027 Features

* Outputs terminated in 50Ω when off

* Frequency range: DC

* 26.5 GHz

* Insertion loss: 2.5 dB @ 26.5 GHz

* Isolation: >70 dB @ 45 MHz >30 dB @ 26.5 GHz

* Return loss: 15 dB (both input & selected output) 12 dB unselected output

* Switching spee

HMMC-2027 General Description

The HMMC-2027 is a GaAs monolithic microwave integrated circuit (MMIC) designed for low insertion loss and high isolation from DC to 26.5 GHz. It is intended for use as a general-purpose, single-pole, double-throw (SPDT), absorptive switch. Two series and two shunt MESFETs per throw provide 3 dB max.

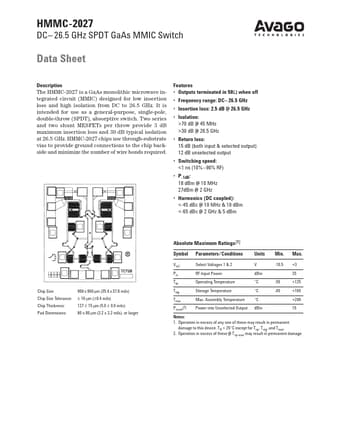

HMMC-2027 Datasheet (76.45 KB)

Preview of HMMC-2027 PDF

Datasheet Details

Part number:

HMMC-2027

Manufacturer:

AVAGO

File Size:

76.45 KB

Description:

Dc-26.5 ghz spdt gaas mmic switch.
