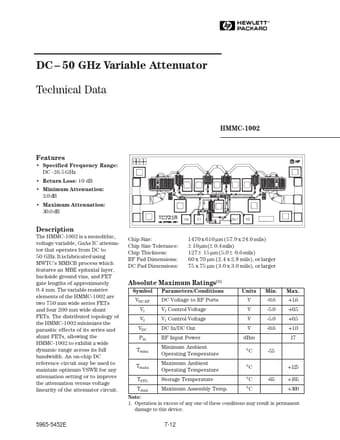

HMMC-1002 Datasheet, Attenuator, HP

HMMC-1002 Features

• Attenuator
• Specified Frequency Range: DC -26.5 GHz
• Return Loss: 10 dB
• Minimum Attenuation: 2.0␣ dB
• Maximum Attenuation: 30.0␣ dB Description The HMMC-1002

PDF File Details

Part number:

HMMC-1002

Manufacturer:

HP

File Size:

88.02kb

Download:

📄 Datasheet

Description:

Dc-50 ghz variable attenuator. The HMMC-1002 is a monolithic, voltage variable, GaAs IC attenuator that operates from DC to 50␣ GHz. It is fabricated using MWTC’s M
