HMMC-5021

2-26.5 GHz GaAs MMIC Traveling Wave Amplifier

HMMC-5021 Features

* Wide-Frequency Range: 2 - 26.5 GHz

* High Gain: 9.5 dB

* Gain Flatness: 0.75 dB

* Return Loss: Input: -14 dB Output: -13 dB

* Low-Frequency Operation Capability: < 2 GHz

* Gain Control: 35 dB Dynamic Range

* Moderate Power: 20 GHz: P-1dB: 18

HMMC-5021 General Description

The HMMC-5021/22/26 is a broadband GaAs MMIC Traveling Wave Amplifier designed for high gain and moderate output power over the full 2 to 26.5 GHz frequency range. Seven MESFET cascode stages provide a flat gain response, making the HMMC-5021/22/26 an ideal wideband gain block. Optical lithography i.

HMMC-5021 Datasheet (257.53 KB)

Preview of HMMC-5021 PDF

Datasheet Details

Part number:

HMMC-5021

Manufacturer:

HP

File Size:

257.53 KB

Description:

2-26.5 ghz gaas mmic traveling wave amplifier.

📁 Related Datasheet

HMMC-5021 2-26.5 GHz GaAs MMIC Traveling Wave Amplifier (Agilent)

HMMC-5021 GaAs MMIC Traveling Wave Amplifiers (Avago)

HMMC-5021 GaAs MMIC Traveling Wave Amplifier (Keysight)

HMMC-5022 2-26.5 GHz GaAs MMIC Traveling Wave Amplifier (Agilent)

HMMC-5022 2-26.5 GHz GaAs MMIC Traveling Wave Amplifier (HP)

HMMC-5022 GaAs MMIC Traveling Wave Amplifier (Keysight)

HMMC-5025 2 - 50 GHz Distributed Amplifier (Avago)

HMMC-5026 2-26.5 GHz GaAs MMIC Traveling Wave Amplifier (Agilent)

HMMC-5026 GaAs MMIC Traveling Wave Amplifiers (Avago)

HMMC-5026 2-26.5 GHz GaAs MMIC Traveling Wave Amplifier (HP)

TAGS

HMMC-5021 2-26.5 GHz GaAs MMIC Traveling Wave Amplifier HP

Image Gallery

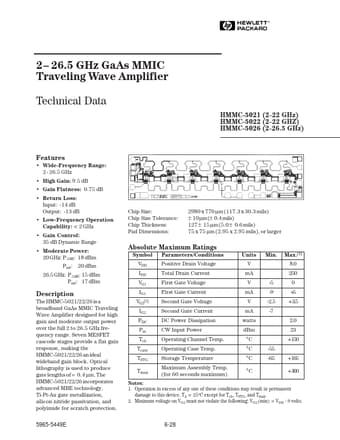

HMMC-5021 Datasheet Preview Page 2 HMMC-5021 Datasheet Preview Page 3
