HMMC-5026, HMMC-5021, 2-26.5 GHz GaAs MMIC Traveling Wave Amplifier

Agilent HMMC-5021 (2 *22 GHz) HMMC-5022 (2 *22 GHz) and HMMC-5026 (2 *26.5 GHz) 2 *26.5 GHz GaAs MMIC Traveling Wave Ampl.
The HMMC-5021/22/26 is a broadband GaAs MMIC Traveling Wave Amplifier designed for high gain and moderate output power over the full 2 to 26.

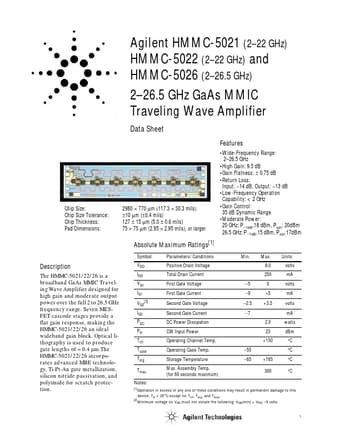

datasheet Preview Page 1 from Datasheet4u.com

HMMC-5021-Agilent.pdf

HMMC-5026 Datasheet Preview — This datasheet PDF includes multiple part numbers: HMMC-5026, HMMC-5021. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HMMC-5026, HMMC-5021

Manufacturer:

Agilent

File Size:

190.23 KB

Description:

2-26.5 GHz GaAs MMIC Traveling Wave Amplifier

Note:

This datasheet PDF includes multiple part numbers: HMMC-5026, HMMC-5021.
Please refer to the document for exact specifications by model.

Features

* 2980 × 770 µm (117.3 × 30.3 mils) ±10 µm (±0.4 mils) 127 ± 15 µm (5.0 ± 0.6 mils) 75 × 75 µm (2.95 × 2.95 mils), or larger
* Wide-Frequency Range: 2
* 26.5 GHz
* High Gain: 9.5 dB
* Gain Flatness: ± 0.75 dB
* Return Loss: Input:
* 14 dB, Output:
* 13
