HMMC-5617 - 6-18 GHz Medium Power Amplifier

Product Overview

Datasheet Details

Part number	HMMC-5617
Manufacturer	Keysight
File Size	3.11 MB
Description	6-18 GHz Medium Power Amplifier
Datasheet	HMMC-5617 Datasheet
Additional preview pages of the HMMC-5617 datasheet.

Product details

Description

The HMMC-5617 6 to 18 GHz MMIC is an efficient two-stage mediumpower amplifier that is designed to be used as a cascadable intermediate gain block for EW applications.

Features

High efficiency: 11% @ P.
1 dB typical.
Output power, P.
1 dB: 18 dBm typical.
High gain: 14 dB typical.
Flat gain response: ±0.5 dB typical.
Low input/output VSWR: < 1.7:1 typical.

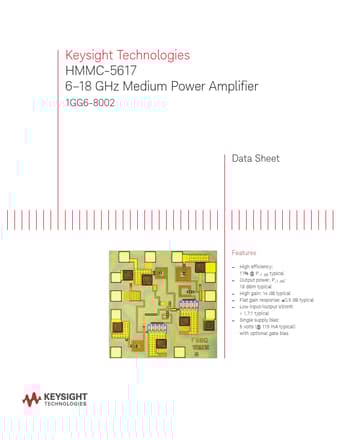

Single supply bias: 5 volts (@ 115 mA typical) with optional gate bias 02 | Keysight | HMMC-5617 6.
18 GHz Medium Power Amplifier.
Data Sheet.
