HMMC-5021

2-26.5 GHz GaAs MMIC Traveling Wave Amplifier

HMMC-5021 Features

* 2980 × 770 µm (117.3 × 30.3 mils) ±10 µm (±0.4 mils) 127 ± 15 µm (5.0 ± 0.6 mils) 75 × 75 µm (2.95 × 2.95 mils), or larger

* Wide-Frequency Range: 2

* 26.5 GHz

* High Gain: 9.5 dB

* Gain Flatness: ± 0.75 dB

* Return Loss: Input:

* 14 dB, Output:

* 13

HMMC-5021 General Description

The HMMC-5021/22/26 is a broadband GaAs MMIC Traveling Wave Amplifier designed for high gain and moderate output power over the full 2 to 26.5 GHz frequency range. Seven MESFET cascode stages provide a flat gain response, making the HMMC-5021/22/26 an ideal wideband gain block. Optical l.

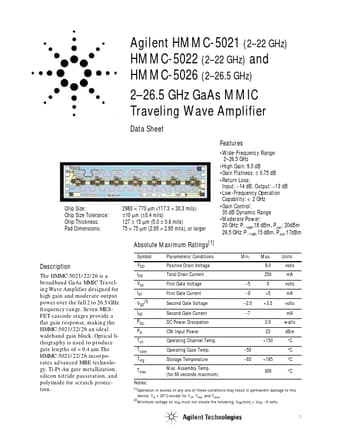

HMMC-5021 Datasheet (190.23 KB)

Preview of HMMC-5021 PDF

Datasheet Details

Part number:

HMMC-5021

Manufacturer:

Agilent

File Size:

190.23 KB

Description:

2-26.5 ghz gaas mmic traveling wave amplifier.
Agilent HMMC-5021 (2

*22 GHz) HMMC-5022 (2

*22 GHz) and HMMC-5026 (2

*26.5 GHz) 2

*26.5 GHz GaAs MMIC Traveling Wave Ampl.
