HMMC-5022 - 2-26.5 GHz GaAs MMIC Traveling Wave Amplifier

Product Overview

Agilent

📥 Download Datasheet

HMMC-5022 2-26.5 GHz GaAs MMIC Traveling Wave Amplifier by Agilent - Datasheet Preview — Datasheet preview – HMMC-5022

Datasheet Details

Part number	HMMC-5022
Manufacturer	Agilent
File Size	190.23 KB
Description	2-26.5 GHz GaAs MMIC Traveling Wave Amplifier
Datasheet	HMMC-5022 Datasheet
Note	This datasheet PDF includes multiple part numbers: HMMC-5022, HMMC-5021. Please refer to the document for exact specifications by model.

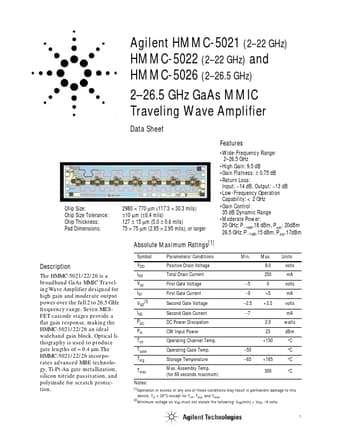

Additional preview pages of the HMMC-5022 datasheet.

Product details

Description

The HMMC-5021/22/26 is a broadband GaAs MMIC Traveling Wave Amplifier designed for high gain and moderate output power over the full 2 to 26.5 GHz frequency range.

Features

2980 × 770 µm (117.3 × 30.3 mils) ±10 µm (±0.4 mils) 127 ± 15 µm (5.0 ± 0.6 mils) 75 × 75 µm (2.95 × 2.95 mils), or larger.
Wide-Frequency Range: 2.
26.5 GHz.
High Gain: 9.5 dB.
Gain Flatness: ± 0.75 dB.
Return Loss: Input:.
14 dB, Output:.
13 dB.
Low-Frequency Operation Capability: < 2 GHz.
Gain Control: 35 dB Dynamic Range.
Moderate Power: 20 GHz: P.
1dB,18 dBm, Psat: 20dBm 26.5 GHz: P.
1dB,15 dBm, P.
