HMMC-5620 - 6-20 GHz High-Gain Amplifier

Product Overview

Agilent

📥 Download Datasheet

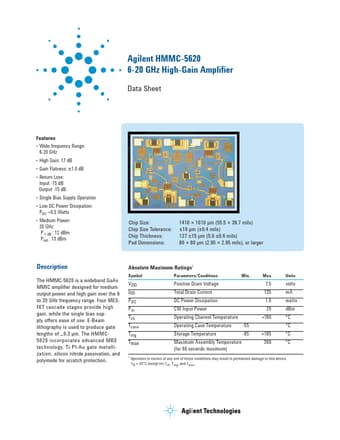

HMMC-5620 6-20 GHz High-Gain Amplifier by Agilent - Datasheet Preview — Datasheet preview – HMMC-5620

Datasheet Details

Part number	HMMC-5620
Manufacturer	Agilent
File Size	580.34 KB
Description	6-20 GHz High-Gain Amplifier
Datasheet	HMMC-5620 Datasheet
Additional preview pages of the HMMC-5620 datasheet.

Product details

Description

The HMMC-5620 is a wideband GaAs MMIC ampliﬁer designed for medium output power and high gain over the 6 to 20 GHz frequency range.

Features

Wide-frequency Range: 6-20 GHz.
High Gain: 17 dB.
Gain Flatness: ±1.0 dB.
Return Loss: Input -15 dB Output -15 dB.
Single Bias Supply Operation.
Low DC Power Dissipation: PDC ~0.5 Watts.
Medium Power: 20 GHz: P-1 dB : 12 dBm Psat : 13 dBm Chip Size: Chip Size Tolerance: Chip Thickness: Pad Dimensions: 1410 × 1010 µm (55.5 × 39.7 mils) ±10 µm (±0.4 mils) 127 ±15 µm (5.0 ±0.6 mils) 80 × 80 µm (2.95 × 2.95 mils), or larger Descripti.
