HMMC-5027

2-26.5 GHz Medium Power Amplifier

HMMC-5027 Features

* Wide-frequency range: 2

* 26.5 GHz

* Moderate gain: 7 dB

* Gain flatness: ± 1 dB

* Return loss: Input: -13 dB Output: -11 dB

* Low-frequency operation capability:

HMMC-5027 General Description

The HMMC-5027 is a broadband GaAs MMIC Traveling Wave Amplifier designed for medium output power and moderate gain over the full 2 to 26.5 GHz frequency range. Seven MESFET cascode stages provide a flat gain response, making the HMMC-5027 an ideal wideband power block. Optical lithography is used to.

HMMC-5027 Datasheet (122.65 KB)

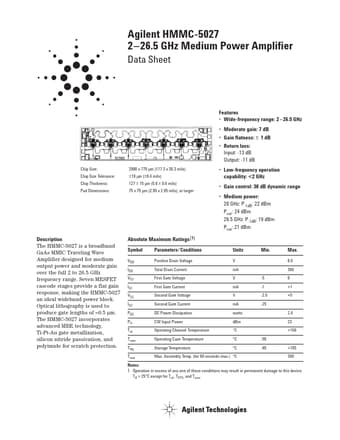

Preview of HMMC-5027 PDF

Datasheet Details

Part number:

HMMC-5027

Manufacturer:

Agilent

File Size:

122.65 KB

Description:

2-26.5 ghz medium power amplifier.
