HMMC-5025

2 - 50 GHz Distributed Amplifier

HMMC-5025 Features

* Frequency Range: 2 - 50 GHz

* Small Signal Gain: 8.5 dB

* P-1dB @ 40 GHz: 12 dBm

* Noise Figure: 5 dB @ 2 - 35 GHz 7 dB @ 35 - 50 GHz

* Return Loss: In/Out: < -10 dB

* 30 dB Gain Control Description The HMMC-5025 was designed as a generic wide band

HMMC-5025 General Description

The HMMC-5025 was designed as a generic wide band distributed amplifier, covering the frequency span 2 - 50 GHz. It consists of seven stages. Each stage is made up of two cascoded FETs with gate peripheries of 48 µm per FET. Both input and output ports were designed to provide 50 Ohm terminations. B.

HMMC-5025 Datasheet (371.52 KB)

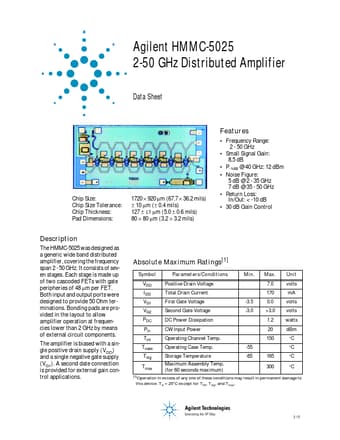

Preview of HMMC-5025 PDF

Datasheet Details

Part number:

HMMC-5025

Manufacturer:

Avago

File Size:

371.52 KB

Description:

2 - 50 ghz distributed amplifier.
Agilent HMMC-5025 2-50 GHz Distributed Amplifier Data Sheet Chip Size: Chip Size Tolerance: Chip Thickness: Pad Dimensions: 1720 × 920 µm (67.7 × 36.
