HMMC-2007

DC-8 GHz Terminated SPDT Switch

HMMC-2007 Features

* Outputs terminated in 50 Ω when off

* Frequency range: DC to 8 GHz

* Insertion loss: 1.2 dB @ 8 GHz

* Isolation: > 70 dB @ 45 MHz > 35 dB @ 8 GHz

* Return loss: 25 dB (both input and selected output) 18 dB unselected output

* Switching speed: < 20 μs

HMMC-2007 General Description

The HMMC-2007 is a GaAs monolithic microwave integrated circuit (MMIC) designed for low insertion loss and high isolation from DC to 8 GHz. It is intended for use as a general-purpose, single-pole, double-throw (SP-DT), absorptive switch. Two series and two shunt MESFETs per throw provide 1.4 dB max.

HMMC-2007 Datasheet (1.07 MB)

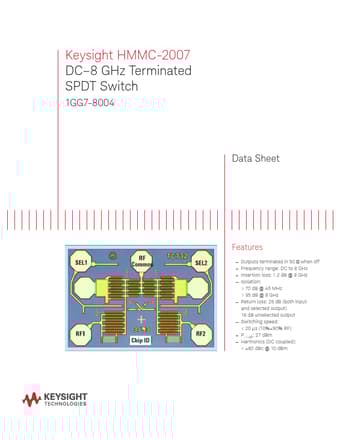

Preview of HMMC-2007 PDF

Datasheet Details

Part number:

HMMC-2007

Manufacturer:

Keysight

File Size:

1.07 MB

Description:

Dc-8 ghz terminated spdt switch.
