HMMC-2007

DC-8 GHz Terminated SPDT Switch

HMMC-2007 Features

* Outputs Terminated in 50 Ω When Off

* Frequency Range: DC-8 GHz

* Insertion Loss: 1.2dB@8␣ GHz

* Isolation: >70 dB @ 45 MHz >35 dB @ 8 GHz

* Return Loss: 25 dB (Both Input and Selected Output) 18 dB Unselected Output

* Switching Speed:

HMMC-2007 General Description

The HMMC-2007 is a GaAs monolithic microwave integrated circuit (MMIC) designed for low insertion loss and high isolation from DC to 8 GHz. It is intended for use as a general-purpose, single-pole, double-throw (SPDT), absorptive switch. Two series and two shunt MESFETs per throw provide 1.4␣ dB max.

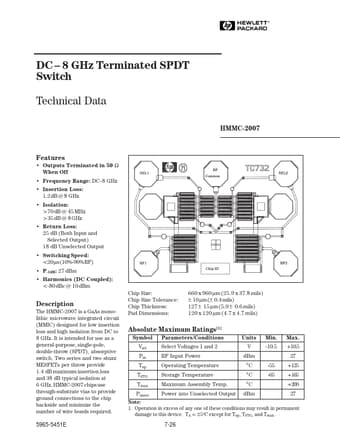

HMMC-2007 Datasheet (71.98 KB)

Preview of HMMC-2007 PDF

Datasheet Details

Part number:

HMMC-2007

Manufacturer:

HP

File Size:

71.98 KB

Description:

Dc-8 ghz terminated spdt switch.
