HSMF-C157 Bi-color Surface Mount Chip LEDs

The HSMF-C15x series of bicolor chip-type LEDs is designed in an industry standard package for ease of handling and use. These bicolor LEDs are available as high efficiency red/yellow, high efficiency red/green, yellow/ green, orange/green and green/amber. The HSMF-C15x has the widely used 3.2 x 2.7.

HSMF-C157 Features

* x Small size x Industry standard footprint x Compatible with IR solder x Diffused optics x Operating temperature range of

* 40°C to +85°C x Five color combinations available: Red/Yellow, Red/Green, Yellow/Green, Orange/Green and Green/Amber. x Available in 8 mm tape on 7 in. (178 mm) diameter

HSMF-C153-AVAGO.pdf

This datasheet PDF includes multiple part numbers: HSMF-C157, HSMF-C153. Please refer to the document for exact specifications by model.

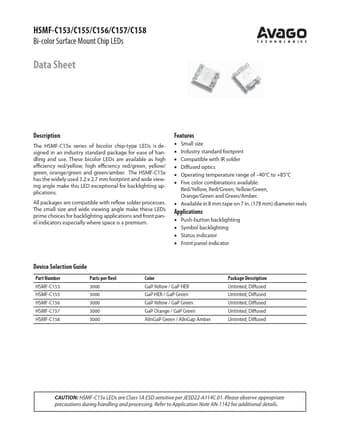

HSMF-C157 Datasheet Preview Page 2 HSMF-C157 Datasheet Preview Page 3

Datasheet Details

Part number:

HSMF-C157, HSMF-C153

Manufacturer:

AVAGO

File Size:

127.62 KB

Description:

Bi-color surface mount chip leds.

Note:

This datasheet PDF includes multiple part numbers: HSMF-C157, HSMF-C153.
Please refer to the document for exact specifications by model.
