MGA-85563 Low Noise Amplifier

MGA-85563 Description

MGA-85563 3-volt, Low Noise Amplifier for 0.8 * 6 GHz Applications Data Sheet .
Avago’s MGA-85563 is an easy-to-use GaAs RFIC amplifier that offers low noise figure and high gain from 0.

MGA-85563 Features

* a minimum noise figure of 1.6 dB and associated gain of 18 dB at 1.9 GHz. The output is matched internally to 50Ω, and the input is partially matched, requiring only a single external inductor for optimal performance. The supply current can be adjusted using an external resistor, varying IP3 from +1

📥 Download Datasheet

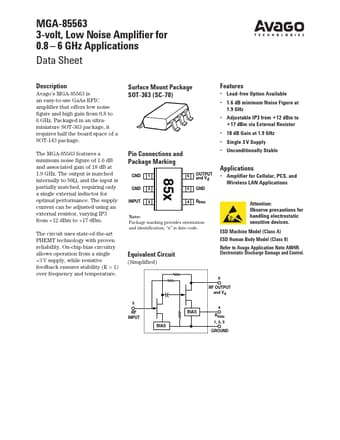

Preview of MGA-85563 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MGA-85563
Manufacturer
AVAGO
File Size
147.75 KB
Datasheet
MGA-85563-AVAGO.pdf
Description
Low Noise Amplifier
