MGA-86576 1.5 - 8 GHz Low Noise GaAs MMIC Amplifier

MGA-86576 Description

MGA-86576 1.5 * 8 GHz Low Noise GaAs MMIC Amplifier Data Sheet .
Avago’s MGA-86576 is an economical, easy-to-use GaAs MMIC amplifier that offers low noise and excellent gain for applications from 1.

MGA-86576 Features

* 1.6 dB Noise Figure at 4 GHz
* 23 dB Gain at 4 GHz
* +6 dBm P1dB at 4 GHz

MGA-86576 Applications

* from 1.5 to 8 GHz. TheMGA-86576maybeusedwithoutimpedancematching as a high performance 2 dB NF gain block. Alternatively, with the addition of a simple series inductor at the input, the device noise figure can be reduced to 1.6 dB at 4 GHz. The circuit uses state-of-the-art PHEMT technology with s

📥 Download Datasheet

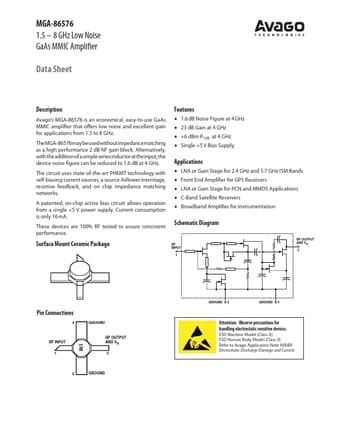

Preview of MGA-86576 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MGA-86576
Manufacturer
AVAGO
File Size
102.62 KB
Datasheet
MGA-86576-AVAGO.pdf
Description
1.5 - 8 GHz Low Noise GaAs MMIC Amplifier
