SPFEIM100_G Datasheet - AVAGO

Fiber Optic Transceiver

SPFEIM100_G Features

* The Avago high speed fiber optical transceiver for Fast Ethernet is an excellent solution for converting high speed binary data to differential digital data.

* Data rate up to 100Mbit/s (125MBaud)

* Integrated EMI shielding

* Operating temperature range 0°C to 70°C

SPFEIM100_G General Description

The 8-pin Optical Transceiver is a highly integrated CMOS IC combined with a high speed photodiode and LED designed to receive and transmit up to 125Mbit/s optical data which can be 4b5b or 8b10b coded (up to 125Mbit/ s). The internal peaking and clamping circuit will yield an www.DataSheet4U.com id.

SPFEIM100_G Datasheet (367.86 KB)

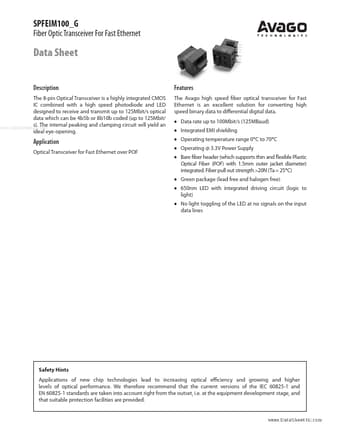

SPFEIM100_G Datasheet Preview — Preview of SPFEIM100_G PDF

Datasheet Details

Part number:

SPFEIM100_G

Manufacturer:

AVAGO

File Size:

367.86 KB

Description:

Fiber optic transceiver.
