AW32901 - Over-Voltage Protection Load Switch

AW32901 Description

AW32901/AW32902/AW32905/ AW32909/AW32910/AW32912 Apr.2018 V1.0 Over-Voltage Protection Load Switch with Surge Protection .
The AW329xx family OVP load switch features surge protection, an internal clamp circuit protects the device from surge voltages up to 120V.

AW32901 Features

* Highly reliable 1.3mm × 1.8mm FCQFN-12 package
* Surge protection
* IEC 61000-4-5: > 120V
* Integrated low Rdson nFET switch: typical 27m
* 5A continuous current capability
* Default Over-Voltage Protection (OVP) threshold
* AW32901: 5.95V
* AW32902: 6.2V
* AW3

AW32901 Applications

* Smartphones
* Tablets

📥 Download Datasheet

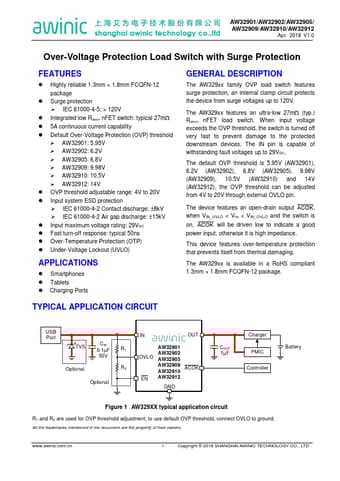

Preview of AW32901 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AW32901
Manufacturer
AWINC
File Size
867.41 KB
Datasheet
AW32901-AWINC.pdf
Description
Over-Voltage Protection Load Switch
