AW32909 - Over-Voltage Protection Load Switch

Product Overview

📥 Download Datasheet

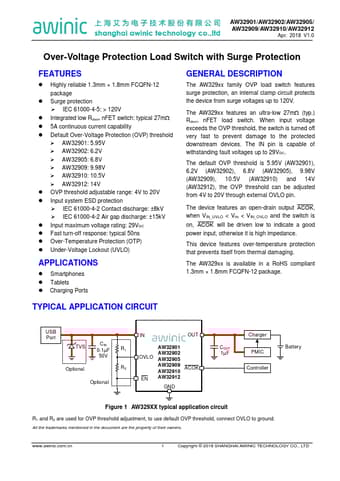

AW32909 Over-Voltage Protection Load Switch by AWINC - Datasheet Preview — Datasheet preview – AW32909

Datasheet Details

Part number	AW32909
Manufacturer	AWINC
File Size	867.41 KB
Description	Over-Voltage Protection Load Switch
Datasheet	AW32909 Datasheet
Note	This datasheet PDF includes multiple part numbers: AW32909, AW32901. Please refer to the document for exact specifications by model.
Additional preview pages of the AW32909 datasheet.

Product details

Description

The AW329xx family OVP load switch

Features

Highly reliable 1.3mm × 1.8mm FCQFN-12 package.
Surge protection.
IEC 61000-4-5: > 120V.
Integrated low Rdson nFET switch: typical 27m.
5A continuous current capability.
Default Over-Voltage Protection (OVP) threshold.
AW32901: 5.95V.
AW32902: 6.2V.
AW32905: 6.8V.
AW32909: 9.98V.
AW32910: 10.5V.
AW32912: 14V.
OVP threshold adjustable range: 4V to 20V.
Input system ESD protection.
IEC 61000-4-2 Contact discharge: ±8kV.
