AW13416 - 0.1-3GHz SP6T Diversity Switch

Product Overview

📥 Download Datasheet

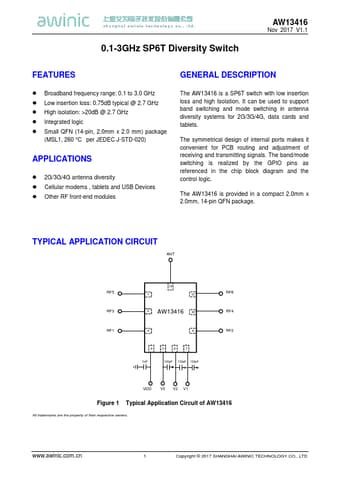

Datasheet preview – AW13416

Datasheet Details

Part number AW13416
Manufacturer AWINIC
File Size 1.16 MB
Description 0.1-3GHz SP6T Diversity Switch
Datasheet download datasheet AW13416 Datasheet
Additional preview pages of the AW13416 datasheet.

Product details

Description

Broadband frequency range: 0.1 to 3.0 GHz Low insertion loss: 0.75dB typical @ 2.7 GHz High isolation: >20dB @ 2.7 GHz Integrated logic Small QFN (14-pin, 2.0mm x 2.0 mm) package (MSL1, 260 °C per JEDEC J-STD-020) APPLICATIONS 2G/3G/4G antenna diversity Cellular modems , tablets and USB Devices Other RF front-end modules The AW13416 is a SP6T switch with low insertion loss and high Isolation.It can be used to support band switching and mode swit
