AW10-xxxx Filter Regulator

0.02 to 0.2MPa setting Metal bowl Nylon bowl Metal bowl with level gauge With bowl guard Drain guide 1/4 Non-relieving Flow direction: Right to left Drain cock with barb fitting: ø6 x ø4 nylon tubing Name plate, caution plate for bowl, and pressure gauge in imperial units (PSI, °F) Applicable model.

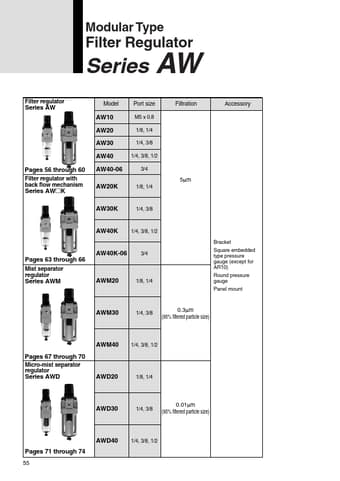

Modular Type Filter Regulator Series Filter regulator AW Filtration Accessory Series AW Model Port size M5 x 0.8 1/8, 1/4 1/4, 3/8 1/4, 3/8, 1/2 3/4 AW10 AW20 AW30 AW40 Pages 56 through 60 Filter regulator with back flow mechanism AW40-06 AW20K 5µm 1/8, 1/4 Series AW२K AW30K 1/4, 3/8 AW40K 1/4, 3/8, 1/2 Bracket www.DataSheet.net/ AW40K-06 Pages 63 through 66 Mist separator regulator 3/4 Square embedded type pressure gauge (except for AR10) Round pressure gauge Panel mount Serie.

AW10-xxxx Features

* 1 for details. 57 Datasheet pdf - http://www.DataSheet4U.co.kr/ Filter Regulator AW10 to 40 Condition: Inlet pressure 0.7MPa Flow Characteristics (Representative values) AW10 0.6 0.5 M5 AW30 0.6 0.5 Rc 3/8 AW40-06 0.6 0.5 Rc 3/4 Outlet pressure MPa Outlet pressure MPa 0.4 0.4 Outlet pr
