AX3112A, AX3112 Datasheet - AXE

AX3112A PWM Control 3A Step-Down Converter

AX3112/A consists of step-down switching regulator with PWM control. The device includes a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. AX3112/A provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is a.

AX3112A Features

* as low current consumption. Since this converter can accommodate an input voltage up to 40V, it is also suitable for the operation via an AC adapter.  FEATURES - Input voltage：8V to 40V - Adjustable version output voltage range from 3.3V to 38V - Duty ratio：0% to 100% PW

AX3112_AXE.pdf

This datasheet PDF includes multiple part numbers: AX3112A, AX3112. Please refer to the document for exact specifications by model.

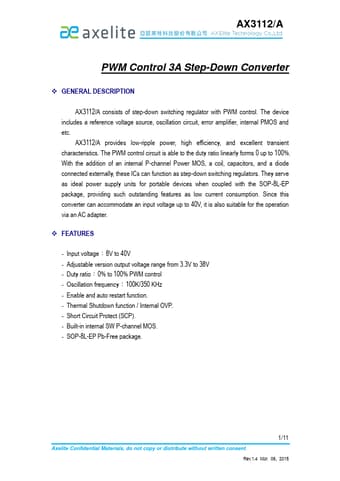

AX3112A Datasheet Preview Page 2 AX3112A Datasheet Preview Page 3

Datasheet Details

Part number:

AX3112A, AX3112

Manufacturer:

AXE

File Size:

671.11 KB

Description:

Pwm control 3a step-down converter.

Note:

This datasheet PDF includes multiple part numbers: AX3112A, AX3112.
Please refer to the document for exact specifications by model.
