AX5202

Step-up PWM DC/DC Converter

AXElite

AX5202 Features

* - Input voltage：3V to 16V - Output voltage：3.3V to 23V - Duty ratio：0% to 85% PWM control - Oscillation frequency：500KHz. Enable and Thermal Shutdown function. Internal Current limit. VÛmw`R

* yÑb€ MOSFET Built-in N-channel SOP-8L with Exposed pad Pb-Free package.  BLOCK DIAGRAM w.goftech.co

AX5202 General Description

The AX5202 is high efficient step-up DC/DC converter. Large output current is possible having a built in internal N channel MOSFET, and using an external coil and diode. The AX5202 can be operated at switching frequencies of 500 kHz allowing for easy filtering and low noise, the size of the external.

AX5202 Datasheet (564.25 KB)

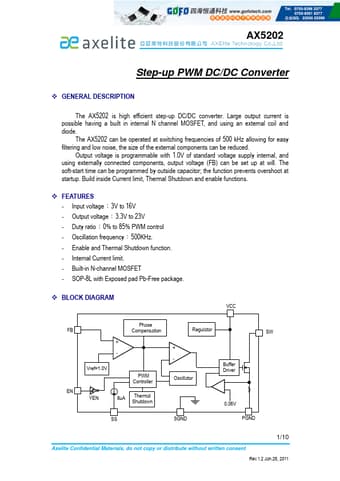

AX5202 Datasheet Preview — Preview of AX5202 PDF

Datasheet Details

Part number:

AX5202

Manufacturer:

AXElite

File Size:

564.25 KB

Description:

Step-up pwm dc/dc converter.
