AX5204

Step-up PWM DC/DC Converter

AXElite

AX5204 Features

* - Input voltage：3V to 20V - Output voltage：3.3V to 32V - Duty ratio：0% to 85% PWM control - Oscillation frequency：500KHz. Enable and Thermal Shutdown function. VÛmw`R

* yÑb€ Internal Current limit. Built-in N-channel MOSFET SOP-8L with Exposed pad Pb-Free package. w.goftech.com  BLOCK DIAGR

AX5204 General Description

The AX5204 is high efficient step-up DC/DC converter. Large output current is possible having a built in internal N channel MOSFET, and using an external coil and diode. The AX5204 can be operated at switching frequencies of 500 kHz allowing for easy filtering and low noise, the size of the external.

AX5204 Datasheet (463.41 KB)

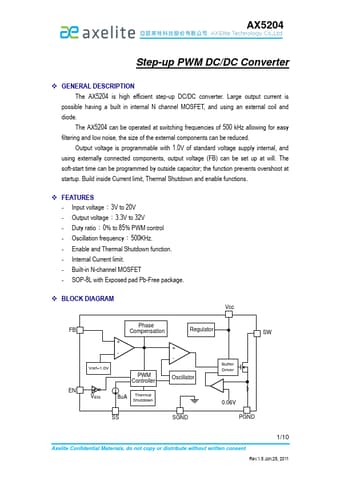

AX5204 Datasheet Preview — Preview of AX5204 PDF

Datasheet Details

Part number:

AX5204

Manufacturer:

AXElite

File Size:

463.41 KB

Description:

Step-up pwm dc/dc converter.
