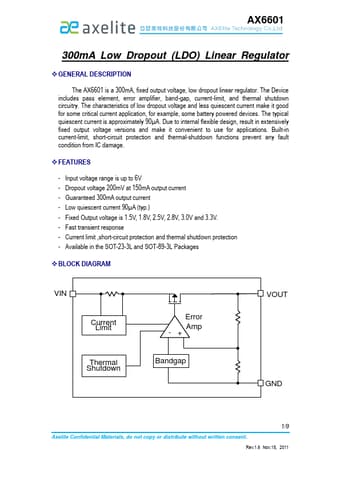

AX6601 300mA Low Dropout (LDO) Linear Regulator

The AX6601 is a 300mA, fixed output voltage, low dropout linear regulator. The Device includes pass element, error amplifier, band-gap, current-limit, and thermal shutdown circuitry. The characteristics of low dropout voltage and less quiescent current make it good for some critical current applicat.

AX6601 Features

* Input voltage range is up to 6V Dropout voltage 200mV at 150mA output current Guaranteed 300mA output current Low quiescent current 90µA (typ.) Fixed Output voltage is 1.5V, 1.8V, 2.5V, 2.8V, 3.0V and 3.3V. Fast transient response Current limit ,short-circuit protection and thermal shutdown protecti
