AX6606

600mA LDO Regulator

AX6606 Features

* Input voltage range : 2.6V~5.5V 1.0V/1.1V/1.2V/1.3V/1.4V fixed output voltages Guaranteed 600mA output current Very Low quiescent current at 50µA (typ.) Maximum supply current in shutdown mode

AX6606 General Description

The AX6606 is a low dropout, positive linear regulator with very low quiescent. It can supply up to 600mA output current. The BP pin with a 10nF bypass capacitor can help reduce the output noise level. The characteristics of low dropout voltage and less quiescent current make it good for some critic.

AX6606 Datasheet (289.32 KB)

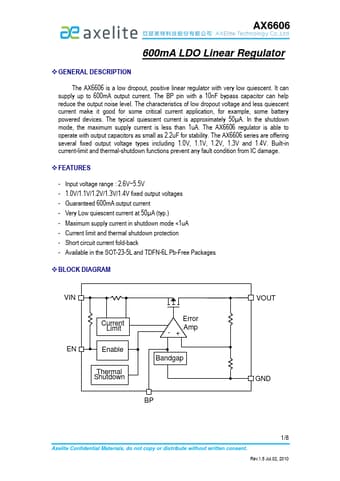

Preview of AX6606 PDF

Datasheet Details

Part number:

AX6606

Manufacturer:

AXElite

File Size:

289.32 KB

Description:

600ma ldo regulator.
