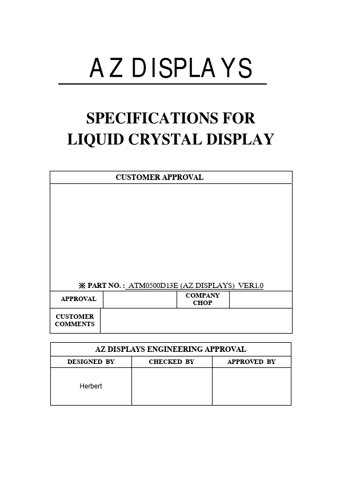

ATM0500D13E
AZ DISPLAYS
SPECIFICATIONS FOR LIQUID CRYSTAL DISPLAY
CUSTOMER APPROVAL
※ PART NO. : ATM0500D13E (AZ DISPLAYS) VER1.0
APPROVAL
PANY CHOP
CUSTOMER MENTS
AZ DISPLAYS ENGINEERING APPROVAL
DESIGNED BY
CHECKED BY
APPROVED BY
Herbert
ATM0500D13E (AZ DISPLAYS)TFT MODULE V1.0
REVISION RECORD
REVISION REVISION DATE
PAGE
CONTENTS
VER1.0 2016-05-12
FIRST ISSUE
AZ DISPLAYS
ATM0500D13E (AZ DISPLAYS)TFT MODULE V1.0
※ CONTENTS
1. GENERAL SPECIFICATIONS 2. PIN ASSIGNMENT 3. OPERATING SPECIFICATIONS 4. OPTICAL SPECIFICATIONS 5. RELIABILITY TEST 6. PRECAUTION FOR USING LCM 7. MECHANICAL DRAWING 8. PACKAGE DRAWING 9. INSPECTION SPECIFICATION
AZ DISPLAYS
ATM0500D13E (AZ DISPLAYS)TFT MODULE V1.0
1. GENERAL SPECIFICATIONS
Item 1. LCD size 2. Driver element 3. Resolution 4. Display mode 5. Dot Pitch (W- H) 6. Pixel pitch(W- H) 7. Active Area(W- H) 8. Module size (W- H) 9. Surface treatment 10. Color arrangement 11. Source IC 12. Gate IC 13. Color 14. Interface 15. Weight 16. Ro...
