ASFLMX-100.000MHz-5ABD - Ultra-Low Phase Jitter HCSL SMD Clock Oscillator

Product Overview

Abracon

Datasheet Details

Part number	ASFLMX-100.000MHz-5ABD
Manufacturer	Abracon
File Size	6.54 MB
Description	Ultra-Low Phase Jitter HCSL SMD Clock Oscillator
Datasheet	ASFLMX-100.000MHz-5ABD Datasheet
Additional preview pages of the ASFLMX-100.000MHz-5ABD datasheet.

Product details

Description

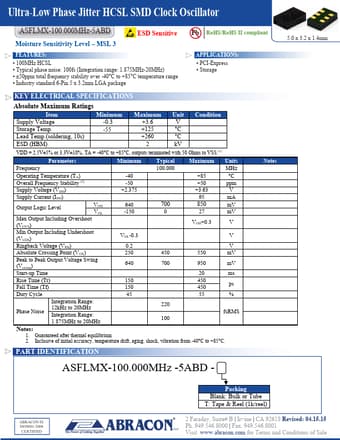

ASVMP 5.0 x 3.2 x 1.4mm Low Jitter High Performance Ref.Min.Nom.Max.A 1.260 1.330 1.400 A1 0.190 0.230 0.270 A2 1.070 1.100 1.130 D 3.100 3.200 3.300 D1 2.100 BSC E 4.900 5.000 5.100 E1 2.540 BSC b 0.850 0.900 0.950 c 0.850 0.900 0.950 e 1.270 BSC f 0.050 0.100 0.150 k 0.860 0.910 0.960 m 0.580 0.630 0.680 n6 Dimensions: mm Dimensional Tolerance aaa 0.100 bbb 0.070 Recommended Land Pattern ABRACON IS ISO9001:2008 CE RCTEIFRIETDIFIED 2 Faraday, Suite# B | Irvine | CA 92618 Revised: 04.

Features

100MHz HCSL.
Typical phase noise: 100fs (Integration range: 1.875MHz-20MHz).
±50ppm total frequency stability over -40°C to +85°C temperature range.
Industry standard 6-Pin 5 x 3.2mm LGA package Pb RoHS/RoHS II compliant 5.0 x 3.2 x 1.4mm.
