* Compact and low in height.(1.6 mm or 1.2 mm max.)
* Low current consumption.
* Tri state function.
* Suitable for high density SMT., Reflow capable.
* Tight stability option.
* Glass sealed package. APPLICATIONS:
* CCD clock for VTR camera.
ASFL1
Abracon Corporation
127.96 KB

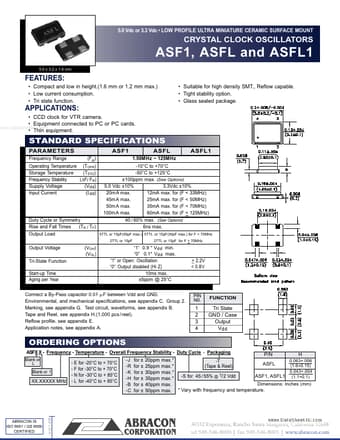

5.0 vdc or 3.3 vdc low profile ultra miniature ceramic surface mount crystal clock oscillators.
5.0 Vdc or 3.3 Vdc
* LOW PROFILE ULTRA MINIATURE CERAMIC SURFACE MOUNT
CRYSTAL CLOCK OSCILLATORS
ASF1, ASFL and ASFL1
5.0 x 3.2 x 1.6 mm
FE.
