ASF461

ADVANCED ANALOG EMI FILTER

ASF461 Features

* n n n n n Uses less than 1.2 sq. in. of Board Space -55°C to +125°C Operation Greater than 50db Ripple Current Reduction Optimal Military Screening No Derating for -55°C to +125°C Operation Typical Application +Vin System Bus ASF461 EMI Case Filter Output Return +Vout +Vin +Vout ASA28XX Case

ASF461 General Description

The ASF461 EMI filter will reduce the input line reflected ripple current of the ASA line of DC/DC converters to levels below the CEO3 limits of MIL-STD-461. These EMI filters are available with military screening and built in a facility fully qualified to MIL-PRF-38534. Four grades are offered with.

ASF461 Datasheet (55.63 KB)

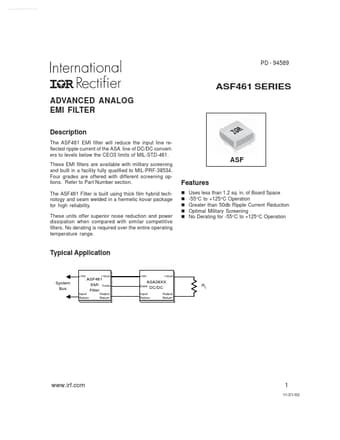

Preview of ASF461 PDF

Datasheet Details

Part number:

ASF461

Manufacturer:

International Rectifier

File Size:

55.63 KB

Description:

Advanced analog emi filter.
