ASF140

3.3V IF Gain Block Amplifier MMIC

ASF140 Features

* 17.2 dB Gain at 150 MHz

* 19 dBm P1dB at 150 MHz

* 38.5 dBm Output IP3 at 150 MHz

* 2.4 dB NF at 150 MHz

* MTTF > 100 Years

* Minimum External Matching Components

* Single Supply: +3.3 V 1.3 Applications

* Base Station Infrastructure

* Repeater

* Telecommuni

ASF140 General Description

ASF140, 3.3V internally matched IF gain block amplifier MMIC, has excellent input and output return loss, high linearity, and low noise over a wide range of frequency DC~1000 MHz, being suitable for use in both receiver and transmitter of telecommunication systems up to 1 GHz. The amplifier is avail.

ASF140 Datasheet (365.96 KB)

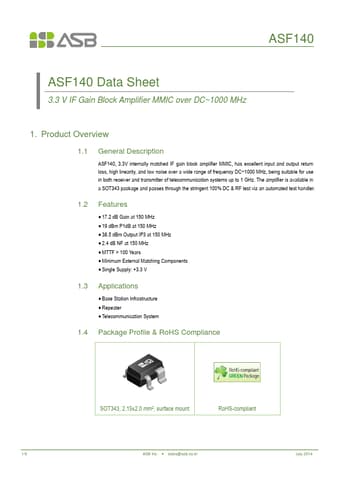

Preview of ASF140 PDF

Datasheet Details

Part number:

ASF140

Manufacturer:

ASB

File Size:

365.96 KB

Description:

3.3v if gain block amplifier mmic.
