ATS302T

5-Function Remote Controller

Actions

ATS302T Features

* with superior performance. RX2C ATS302R is the first receiver controller worldwide with internal and selectable DC-DC converter and shift-speed module. The TX2C ATS302T/RX2C ATS302R are with more functions and excellent quality, its stability and affectivity promoted to a higher level applications.

ATS302T General Description

The TX2C ATS302T/RX2C ATS302R are a pair of CMOS LSIs designed for remote controlled car applications. TX2C ATS302T is the encoder and RX2C ATS302R is the decode. They provide five function keys to control forward, Backward, Rightward, Leftward and Turbo motions. Besides, a combination of these five.

ATS302T Datasheet (935.42 KB)

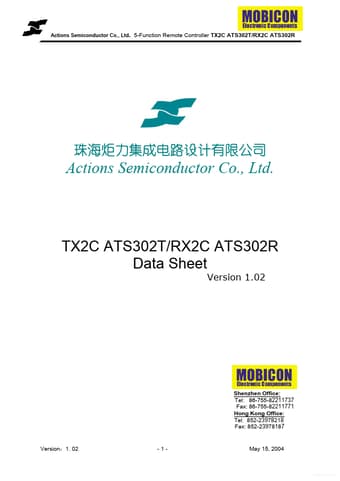

ATS302T Datasheet Preview — Preview of ATS302T PDF

Datasheet Details

Part number:

ATS302T

Manufacturer:

Actions

File Size:

935.42 KB

Description:

5-function remote controller.
Actions Semiconductor Co., Ltd. 5-Function Remote Controller TX2C ATS302T/RX2C ATS302R Actions Semiconductor Co., Ltd. TX2C ATS302T/RX2C ATS302R D.
