ATS344 - High-Precision Linear Hall-Effect Sensor

Allegro

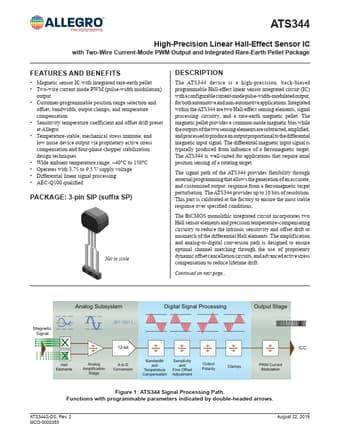

ATS344 Datasheet Preview — Preview of ATS344 PDF

Datasheet Details

Part number	ATS344
Manufacturer	Allegro
File Size	1.52 MB
Description	High-Precision Linear Hall-Effect Sensor
Datasheet	ATS344-Allegro.pdf

ATS344 Product details

Description

The ATS344 device is a high-precision, back-biased programmable Hall-effect linear sensor integrated circuit (IC) with a conf igurable current-mode pulse-width-modulated output, for both automotive and non-automotive applications.

Features

Magnetic sensor IC with integrated rare-earth pellet.
Two-wire current mode PWM (pulse-width modulation) output.
Customer-programmable position range selection and offset, bandwidth, output clamps, and temperature compensation.
Sensitivity temperature coeff icient and offset drift preset at Allegro.
Temperature-stable, mechanical stress immune, and low noise device output via proprietary active stress compensation and four-phase chopper stabilization.
