ATS679LSL Datasheet, Sensor, Allegro

ATS679LSL Features

  • Sensor
  • SL package provides a fully integrated solution with a non-rare-earth back-biasing magnet and EMC protection circuit
  • True target state recognition at device power-on

PDF File Details

Part number:

ATS679LSL

Manufacturer:

Allegro

File Size:

687.53kb

Download:

📄 Datasheet

Description:

Self-calibrating tpos camshaft speed sensor. The ATS679LSL is a True Power-On State camshaft sensor incorporating a non-rare-earth back-biasing magnet, advanced fully synchronous

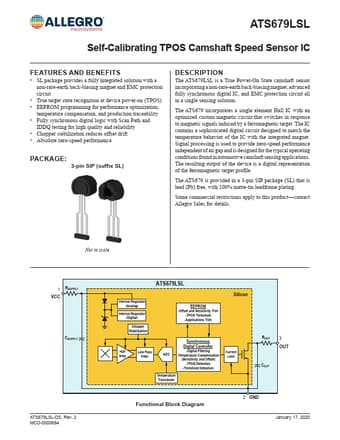

Datasheet Preview: ATS679LSL 📥 Download PDF (687.53kb)
Page 2 of ATS679LSL Page 3 of ATS679LSL

ATS679LSL Application

  • Applications The resulting output of the device is a digital representation of the ferromagnetic target profile. The ATS679 is provided in a 3-pin
