ATS601LSG - Single-Element Tooth-Detecting Speed Sensor

Product Overview

Allegro

Part number	ATS601LSG
Manufacturer	Allegro
File Size	1.32 MB
Description	Single-Element Tooth-Detecting Speed Sensor
Datasheet	ATS601LSG Datasheet

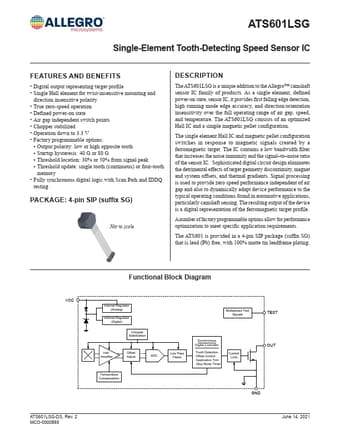

Additional preview pages of the ATS601LSG datasheet.

The ATS601LSG is a unique addition to the Allegro™ camshaft sensor IC family of products.

Digital output representing target profile.
Single Hall element for twist-insensitive mounting and direction insensitive polarity.
True zero-speed operation.
Defined power-on state.
Air gap independent switch points.
Chopper stabilized.
Operation down to 3.3 V.
Factory programmable options: ▫ Output polarity: low or high opposite tooth ▫ Startup hysteresis: 40 G or 80 G ▫ Threshold location: 30% or 50% from signal peak ▫ Th.
