ACT2801B - 5V/1.5A Backup Battery Manager

Product Overview

Active-Semi

📥 Download Datasheet

ACT2801B 5V/1.5A Backup Battery Manager by Active-Semi - Datasheet Preview — Datasheet preview – ACT2801B

Datasheet Details

Part number	ACT2801B
Manufacturer	Active-Semi
File Size	2.14 MB
Description	5V/1.5A Backup Battery Manager
Datasheet	ACT2801B Datasheet
Note	This datasheet PDF includes multiple part numbers: ACT2801B, ACT2801-Active. Please refer to the document for exact specifications by model.

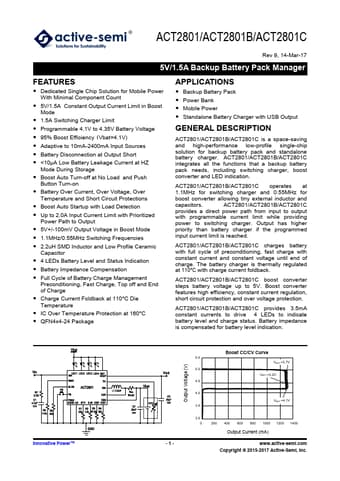

Additional preview pages of the ACT2801B datasheet.

Product details

Features

Dedicated Single Chip Solution for Mobile Power With Minimal Component Count.
5V/1.5A Constant Output Current Limit in Boost Mode.
1.5A Switching Charger Limit.
Programmable 4.1V to 4.35V Battery Voltage.
95% Boost Efficiency (Vbat=4.1V).
Adaptive to 10mA-2400mA Input Sources.
Battery Disconnection at Output Short.
