ACT2803 - 5V/2.4A Dual Cell Battery Power Manager

Product Overview

Qorvo

📥 Download Datasheet

ACT2803 5V/2.4A Dual Cell Battery Power Manager by Qorvo - Datasheet Preview — Datasheet preview – ACT2803

Datasheet Details

Part number	ACT2803
Manufacturer	Qorvo
File Size	1.39 MB
Description	5V/2.4A Dual Cell Battery Power Manager
Datasheet	ACT2803 Datasheet

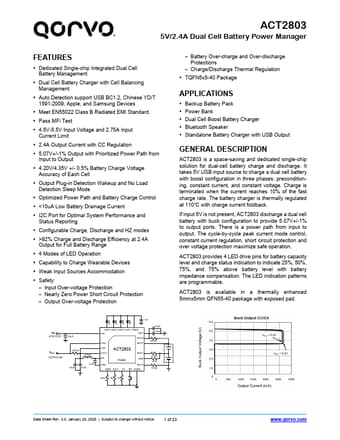

Additional preview pages of the ACT2803 datasheet.

Product details

Description

ACT2803 is a space-saving and dedicated single-chip solution for dual-cell battery charge and discharge.

Features

Dedicated Single-chip Integrated Dual Cell Battery Management.
Dual Cell Battery Charger with Cell Balancing Management.
Auto Detection support USB BC1.2, Chinese YD/T 1591-2009, Apple, and Samsung Devices.
Meet EN55022 Class B Radiated EMI Standard.
Pass MFi Test.
4.5V-5.5V Input Voltage and 2.75A Input Current Limit.
2.4A Output Current with CC Regulation.
5.07V+/-1% Output with Prioritized Power Path from Input to Output.
