ACT4060ASH - Wide Input 2A Step Down Converter

This page provides the datasheet information for the ACT4060ASH, a member of the ACT4060A Wide Input 2A Step Down Converter family.

Datasheet Summary

Description

The ACT4060A is a current-mode step-down DC/DC converter that provides up to 2 A of output current at 400kHz switching frequency.

The device utilizes ActiveSemi’s proprietary high voltage process for operation with input voltages up to 24 V.

Features

  • 2 A Output Current.
  • Up to 96% Efficiency.
  • 4.5 V to 24 V Input Range.
  • 10 µA Shutdown Supply Current.
  • 400 kHz Switching Frequency.
  • Adjustable Output Voltage.
  • Cycle-by-Cycle Current Limit Protection.
  • Thermal Shutdown Protection.
  • Frequency Foldback at Short Circuit.
  • Stability with Wide Range of Capacitors, Including Low ESR Ceramic Capacitors.
  • SOP-8 Package.

📥 Download Datasheet

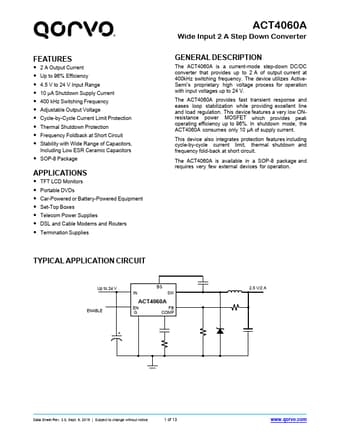

Datasheet preview – ACT4060ASH
