ACT4065, ACT4065-Active - High Input 2A Step Down Converter

ACT4065 Description

Data Sheet Rev 2, 6/2006 ACT4065 High Input 2A Step Down Converter .
The ACT4065 is a current-mode step-down DC-DC converter that generates up to 2A output current at 200kHz switching frequency.

ACT4065 Features

* 2A Output Current Up to 95% Efficiency Up to 28V Input Range 8µA Shutdown Supply Current 200kHz Switching Frequency Adjustable Output Voltage Cycle-by-Cycle Current Limit Protection Thermal Shutdown Protection Frequency Foldback at Sh

ACT4065 Applications

* TFT LCD Monitors Portable DVDs Car-Powered or Battery-Powered Equipments Set-Top Boxes Telecom Power Supplies DSL and Cable Modems and Routers Termination Supplies 5V/2A (23V INPUT) BS 8.5V to 28V IN SW 5V/1.7A ACT4065 ENABLE EN G FB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACT4065, ACT4065-Active. Please refer to the document for exact specifications by model.

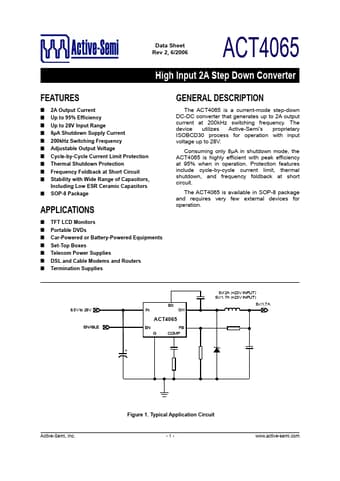

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACT4065, ACT4065-Active
Manufacturer
Active-Semi
File Size
249.78 KB
Datasheet
ACT4065-Active-Semi.pdf
Description
High Input 2A Step Down Converter
Note
This datasheet PDF includes multiple part numbers: ACT4065, ACT4065-Active.
Please refer to the document for exact specifications by model.
