ACT4065ASH-T, ACT4065A - High Input 2A Step Down Converter

ACT4065ASH-T Description

.
The ACT4065A is a current-mode step-down DC/DC converter that generates up to 2A output current at 210kHz switching frequency.

ACT4065ASH-T Features

* 2A Output Current
* Up to 95% Efficiency
* 6.0V to 30V Input Range
* 210kHz Switching Frequency
* Adjustable Output Voltage
* Cycle-by-Cycle Current Limit Protection
* Thermal Shutdown Protection
* Frequency Foldback at Short Circuit

ACT4065ASH-T Applications

* TFT LCD Monitors
* Portable DVDs
* Car-Powered or Battery-Powered Equipments
* Set-Top Boxes
* Telecom Power Supplies
* DSL and Cable Modems and Routers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACT4065ASH-T, ACT4065A. Please refer to the document for exact specifications by model.

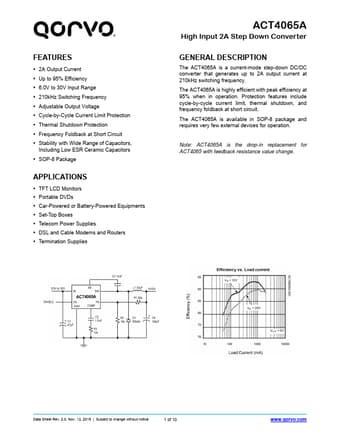

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACT4065ASH-T, ACT4065A
Manufacturer
Qorvo
File Size
742.81 KB
Datasheet
ACT4065A-Qorvo.pdf
Description
High Input 2A Step Down Converter
Note
This datasheet PDF includes multiple part numbers: ACT4065ASH-T, ACT4065A.
Please refer to the document for exact specifications by model.
