ACT4060A - Monolithic Step-down Converter

Datasheet Summary

Description

The ACT4060A is a monolithic step-down switch mode converter with a built in internal power MOSFET.

It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation.

Features

  • 2A Output Current.
  • 0.22Ω Internal Power MOSFET Switch.
  • Stable with Low ESR Output Ceramic Capacitors.
  • Up to 95% Efficiency.
  • 25µA Shutdown Mode.
  • Fixed 450KHz Frequency.
  • Thermal Shutdown.
  • Cycle-by-Cycle Over Current Protection.
  • Wide 4.75 to 25V Operating Input Range.
  • Output Adjustable from 1.22V to 21V.
  • Programmable Under Voltage Lockout.

📥 Download Datasheet

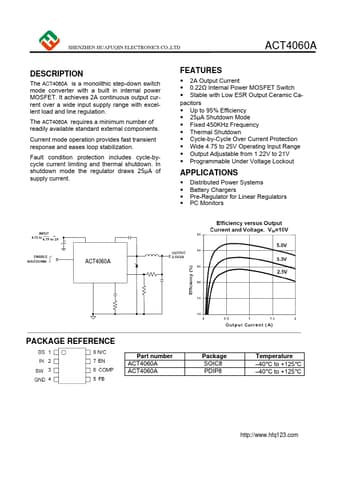

Datasheet preview – ACT4060A

Datasheet Details

Part number ACT4060A
Manufacturer HUAFUQIN
File Size 344.34 KB
Description Monolithic Step-down Converter
Datasheet download datasheet ACT4060A Datasheet
Additional preview pages of the ACT4060A datasheet.

📁 Similar Datasheet

  • ACT4060A - Wide Input 2A Step Down Converter (Active-Semi)
  • ACT4060A - Wide Input 2A Step Down Converter (Qorvo)
  • ACT4060ASH - Wide Input 2A Step Down Converter (Qorvo)
  • ACT4060ASH-T - Wide Input 2A Step Down Converter (Qorvo)
  • ACT4060 - Wide Input 2A Step Down Converter (Active-Semi)
  • ACT4060 - Wide Input 2A Step Down Converter (ETC)
  • ACT4060B - 18V/2A Step-Down DC/DC Converter (Active-Semi)
  • ACT4065 - High Input 2A Step Down Converter (Active-Semi)
  • ACT4065 - 450 KHz Step-Down Converter (Microelectronic)
  • ACT4065A - High Input 2A Step Down Converter (Active-Semi)
Other Datasheets by HUAFUQIN

    Full PDF Text Transcription

    Click to expand full text
    SHENZHEN HUAFUQIN ELECTRONICS CO.,LTD ACT4060A DESCRIPTION The ACT4060A is a monolithic step-down switch mode converter with a built in internal power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. The ACT4060A requires a minimum number of readily available standard external components. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-bycycle current limiting and thermal shutdown. In shutdown mode the regulator draws 25µA of supply current. FEATURES • 2A Output Current • 0.
