ACT4060ASH-T - Wide Input 2A Step Down Converter

This page provides the datasheet information for the ACT4060ASH-T, a member of the ACT4060A Wide Input 2A Step Down Converter family.

Datasheet Summary

Description

The ACT4060A is a current-mode step-down DC/DC converter that provides up to 2 A of output current at 400kHz switching frequency.

The device utilizes ActiveSemi’s proprietary high voltage process for operation with input voltages up to 24 V.

Features

  • 2 A Output Current.
  • Up to 96% Efficiency.
  • 4.5 V to 24 V Input Range.
  • 10 µA Shutdown Supply Current.
  • 400 kHz Switching Frequency.
  • Adjustable Output Voltage.
  • Cycle-by-Cycle Current Limit Protection.
  • Thermal Shutdown Protection.
  • Frequency Foldback at Short Circuit.
  • Stability with Wide Range of Capacitors, Including Low ESR Ceramic Capacitors.
  • SOP-8 Package.

📥 Download Datasheet

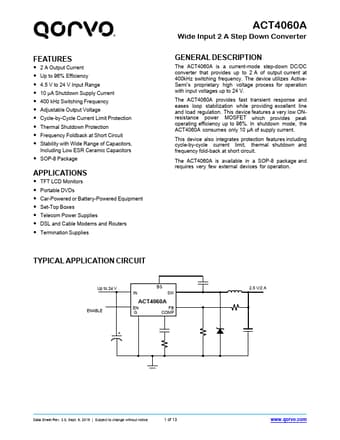

Datasheet preview – ACT4060ASH-T

Datasheet Details

Part number ACT4060ASH-T
Manufacturer Qorvo
File Size 1.85 MB
Description Wide Input 2A Step Down Converter
Datasheet download datasheet ACT4060ASH-T Datasheet
Additional preview pages of the ACT4060ASH-T datasheet.

📁 Similar Datasheet

  • ACT4060A - Monolithic Step-down Converter (HUAFUQIN)
  • ACT4060A - Wide Input 2A Step Down Converter (Active-Semi)
  • ACT4060 - Wide Input 2A Step Down Converter (Active-Semi)
  • ACT4060 - Wide Input 2A Step Down Converter (ETC)
  • ACT4060B - 18V/2A Step-Down DC/DC Converter (Active-Semi)
  • ACT4065 - High Input 2A Step Down Converter (Active-Semi)
  • ACT4065 - 450 KHz Step-Down Converter (Microelectronic)
  • ACT4065A - High Input 2A Step Down Converter (Active-Semi)
  • ACT4012 - Wide Input 1.5A Step Down Converter (Active-Semi)
  • ACT4012A - Wide Input 1.5A Step Down Converter (Active-Semi)
Other Datasheets by Qorvo

Full PDF Text Transcription

Click to expand full text
FEATURES  2 A Output Current  Up to 96% Efficiency  4.5 V to 24 V Input Range  10 µA Shutdown Supply Current  400 kHz Switching Frequency  Adjustable Output Voltage  Cycle-by-Cycle Current Limit Protection  Thermal Shutdown Protection  Frequency Foldback at Short Circuit  Stability with Wide Range of Capacitors, Including Low ESR Ceramic Capacitors  SOP-8 Package APPLICATIONS  TFT LCD Monitors  Portable DVDs  Car-Powered or Battery-Powered Equipment  Set-Top Boxes  Telecom Power Supplies  DSL and Cable Modems and Routers  Termination Supplies ACT4060A Wide Input 2 A Step Down Converter GENERAL DESCRIPTION The ACT4060A is a current-mode step-down DC/DC converter that provides up to 2 A of output current at 400kHz switching frequency.
