ACT334, ACT334-Active - High Performance ActivePSR Primary Switching Regulator

ACT334 Description

ACT334 Rev 2, 14-Nov-12 High Performance ActivePSRTM Primary Switching Regulator .

ACT334 Features

* Ultra Low Standby Power < 30mW
* Patented Primary Side Regulation Technology
* Suitable Operation Frequency up to 85kHZ
* Proprietary Fast Startup Circuit
* Integrated Line and Primary Inductance Compensation
* Integrated Programmable Output Cord Res

ACT334 Applications

* and utilizes Active-Semi’s proprietary primary-side feedback architecture to provide accurate constant voltage, constant current (CV/CC) regulation without the need of an opto-coupler or reference device. Integrated line and primar

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACT334, ACT334-Active. Please refer to the document for exact specifications by model.

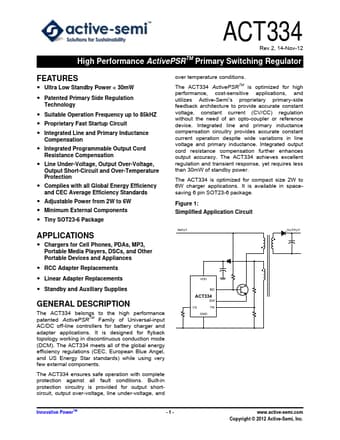

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACT334, ACT334-Active
Manufacturer
Active-Semi
File Size
278.69 KB
Datasheet
ACT334-Active-Semi.pdf
Description
High Performance ActivePSR Primary Switching Regulator
Note
This datasheet PDF includes multiple part numbers: ACT334, ACT334-Active.
Please refer to the document for exact specifications by model.
