ACT337, ACT337-Active - High Performance ActivePSR Primary Switching Regulator

ACT337 Description

ACT337 Rev 2, 14-Nov-12 High Performance ActivePSRTM Primary Switching Regulator .

ACT337 Features

* Ultra Low Standby Power < 30mW
* Patented Primary Side Regulation Technology
* Suitable Operation Frequency up to 85kHZ
* Proprietary Fast Startup Circuit
* Integrated Line and Primary Inductance Compensation
* Integrated Programmable Output Cord Res

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACT337, ACT337-Active. Please refer to the document for exact specifications by model.

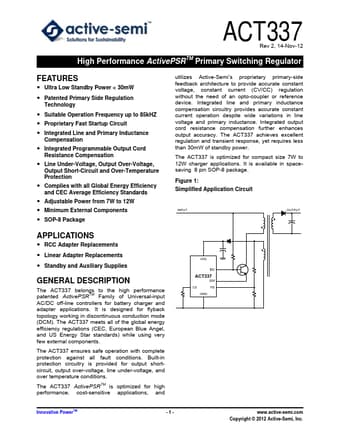

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACT337, ACT337-Active
Manufacturer
Active-Semi
File Size
413.86 KB
Datasheet
ACT337-Active-Semi.pdf
Description
High Performance ActivePSR Primary Switching Regulator
Note
This datasheet PDF includes multiple part numbers: ACT337, ACT337-Active.
Please refer to the document for exact specifications by model.
