ACT6710 - MobileLDO HIGH PERFORMANCE LOW DROPOUT REGULATORS

Download the ACT6710 datasheet PDF. This datasheet also covers the ACT6710-Active variant, as both devices belong to the same mobileldo high performance low dropout regulators family and are provided as variant models within a single manufacturer datasheet.

General Description

The ACT670_ and ACT671_ MobileLDOTM series products are high performance low dropout voltage regulators designed for portable applications with very low quiescent current (23uA) and dropout voltage (110mV at 150mA).

The ACT6710/6711/6712 LDOs have typical current limit of 700mA.

Key Features

  • 110mV typical dropout with 150mA Load Very Low 23µA Supply Current 1.5% Voltage Accuracy 450mA (ACT670_) or 700mA (ACT671_) Typical Current Limit Thermal Shutdown Protection Fold-back Current Limit Protection 1.8V to 3.3V Fixed Output Voltage Power-Good Indicator Low Noise Bypass Pin Stability with Wide Range of Capacitors Compact SOT23-3 and SOT23-5 Packages.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ACT6710-Active-Semi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ACT6710
Manufacturer Active-Semi
File Size 292.82 KB
Description MobileLDO HIGH PERFORMANCE LOW DROPOUT REGULATORS
Datasheet download datasheet ACT6710 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ACT630SMX-2 (ACT630SMX-2/4) low aging 6x3.5mm SMD Crystal Advanced Crystal Technology
ACT630SMX-4 (ACT630SMX-2/4) low aging 6x3.5mm SMD Crystal Advanced Crystal Technology
ACT6311 White LED/OLED Step-Up Converter Qorvo
ACT6311UC-T White LED/OLED Step-Up Converter Qorvo
ACT631SMX-2 crystal suitable Advanced Crystal Technology

Other Datasheets by Active-Semi

Part Number Description
ACT6711 MobileLDO HIGH PERFORMANCE LOW DROPOUT REGULATORS
ACT6712 MobileLDO HIGH PERFORMANCE LOW DROPOUT REGULATORS
ACT6700 MobileLDO High Performance Low Dropout Regulators
ACT6701 MobileLDO High Performance Low Dropout Regulators
ACT6702 MobileLDO High Performance Low Dropout Regulators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

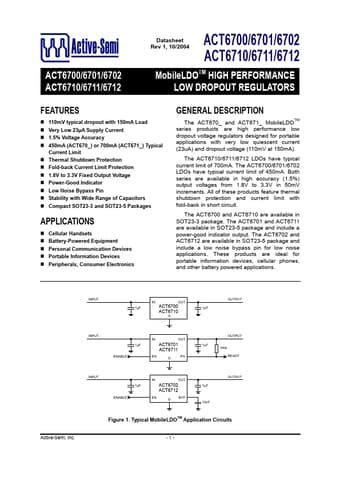

ACT6700/6701/6702 ACT6710/6711/6712 Datasheet ACT6700/6701/6702 Rev 1, 10/2004 ACT6710/6711/6712 MobileLDOTM HIGH PERFORMANCE LOW DROPOUT REGULATORS FEATURES 110mV typical dropout with 150mA Load Very Low 23µA Supply Current 1.5% Voltage Accuracy 450mA (ACT670_) or 700mA (ACT671_) Typical Current Limit Thermal Shutdown Protection Fold-back Current Limit Protection 1.8V to 3.
