RM24C512C-L - 512-Kbit 1.65V Minimum Non-volatile Serial EEPROM

Adesto

Datasheet Details

Part number	RM24C512C-L
Manufacturer	Adesto
File Size	1.25 MB
Description	512-Kbit 1.65V Minimum Non-volatile Serial EEPROM
Datasheet	RM24C512C-L-Adesto.pdf

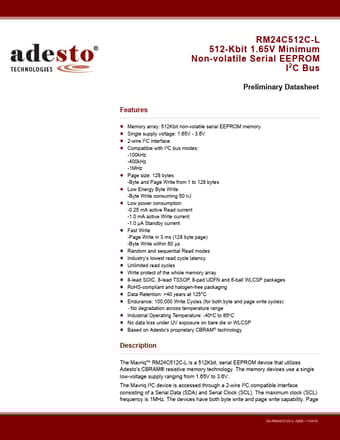

Preliminary Datasheet.
Memory array: 512Kbit non-volatile serial EEPROM memory.
Single supply voltage: 1.65V - 3.6V.
2-wire I2C interface.
Compatible with I2C bus modes: -100kHz -400kHz -1MHz.
Page size: 128 bytes -Byte and Page Write from 1 to 128 bytes.
Low Energy Byte Write -Byte Write consuming 50 nJ.
Low power consumption -0.25 mA active Read current -1.0 mA active Write current -1.0 µA Standby current.
Fast Write -Page Write in 3 ms (128 b.
