AAT1140 - Fast Transient 600mA Step-Down Converter
Advanced Analog Technology
General Description
The AAT1140 SwitchReg is a 1.4MHz step-down converter with an input voltage range of 2.7V to 5.5V and output voltage as low as 0.6V.
It is optimized to react quickly to a load variation.
Key Features
VIN Range: 2.7V to 5.5V VOUT Fixed or Adjustable from 0.6V to VIN 35μA No Load Quiescent Current Up to 98% Efficiency 600mA Max Output Current 1.4MHz Switching Frequency 120μs Soft Start Fast Load Transient Over-Temperature Protection Current Limit Protection 100% Duty Cycle Low-Dropout Operation.
Full PDF Text Transcription for AAT1140 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
AAT1140. For precise diagrams, and layout, please refer to the original PDF.

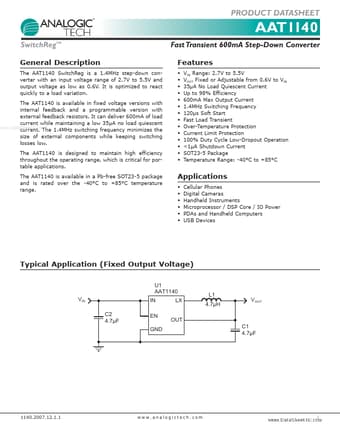

PRODUCT DATASHEET AAT1140 SwitchRegTM General Description The AAT1140 SwitchReg is a 1.4MHz step-down converter with an input voltage range of 2.7V to 5.5V and output vol...
View more extracted text
n converter with an input voltage range of 2.7V to 5.5V and output voltage as low as 0.6V. It is optimized to react quickly to a load variation. The AAT1140 is available in fixed voltage versions with internal feedback and a programmable version with external feedback resistors. It can deliver 600mA of load current while maintaining a low 35μA no load quiescent www.DataSheet4U.com current. The 1.4MHz switching frequency minimizes the size of external components while keeping switching losses low. The AAT1140 is designed to maintain high efficiency throughout the operating range, which is critical for portable applications.
AAT1140 Datasheet
