AZ3842 - (AZ3842 - AZ3845) CURRENT MODE PWM CONTROLLER

Advanced Analog Technology

📥 Download Datasheet

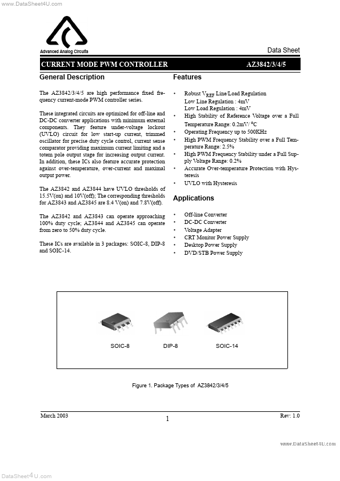

AZ3842 Datasheet Preview — Preview of AZ3842 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AZ3842
Manufacturer: Advanced Analog Technology
File Size: 495.00 KB
Datasheet: AZ3842_AdvancedAnalogTechnology.pdf
Description: (AZ3842 - AZ3845) CURRENT MODE PWM CONTROLLER

AZ3842 Product details

Description

The AZ3842/3/4/5 are high performance fixed frequency current-mode PWM controller series.

Features

Robust VREF Line/Load Regulation Low Line Regulation : 4mV Low Load Regulation : 4mV High Stability of Reference Voltage over a Full Temperature Range: 0.2mV/ oC Operating Frequency up to 500KHz High PWM Frequency Stability over a Full Temperature Range: 2.5% High PWM Frequency Stability under a Full Supply Voltage Range: 0.2% Accurate Over-temperature Protection with Hysteresis UVLO with Hysteresis.
