AZ324, LOW POWER QUAD OPERATIONAL AMPLIFIERS

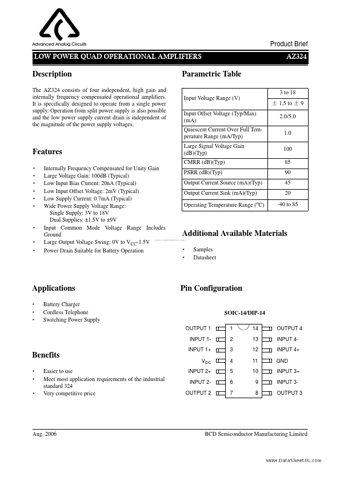

Product Brief LOW POWER QUAD OPERATIONAL AMPLIFIERS AZ324 .
The AZ324 consists of four independent, high gain and internally frequency compensated operational amplifiers.

datasheet Preview Page 1 from Datasheet4u.com

AZ324_BCDSemiconductor.pdf

AZ324 Datasheet Preview — Preview of AZ324 PDF

Datasheet Details

Part number:

AZ324

Manufacturer:

BCD Semiconductor

File Size:

85.99 KB

Description:

LOW POWER QUAD OPERATIONAL AMPLIFIERS

Features

* Large Signal Voltage Gain (dB)(Typ)
* CMRR (dB)(Typ) 85 Internally Frequency Compensated for Unity Gain PSRR (dB)(Typ) 90 Large Voltage Gain: 100dB (Typical) Output Current Source (mA)(Typ) 45 Low Input Bias Current: 20nA (Typical) Low Input Off

Applications

* Battery Charger Cordless Telephone Switching Power Supply Pin Configuration SOIC-14/DIP-14 OUTPUT 1 INPUT 11 2 3 4 5 6 7 14 13 12 11 10 9 8 OUTPUT 4 INPUT 4INPUT 4+ GND INPUT 3+ INPUT 3OUTPUT 3 Benefits
* Easier to use Meet most application requirements of the ind
